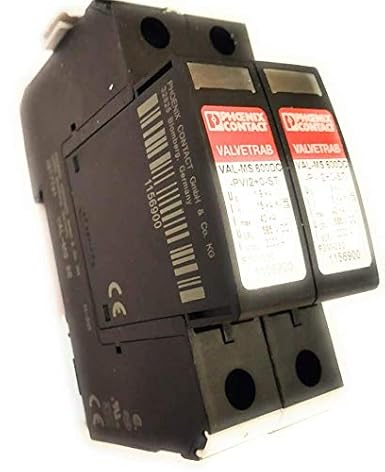

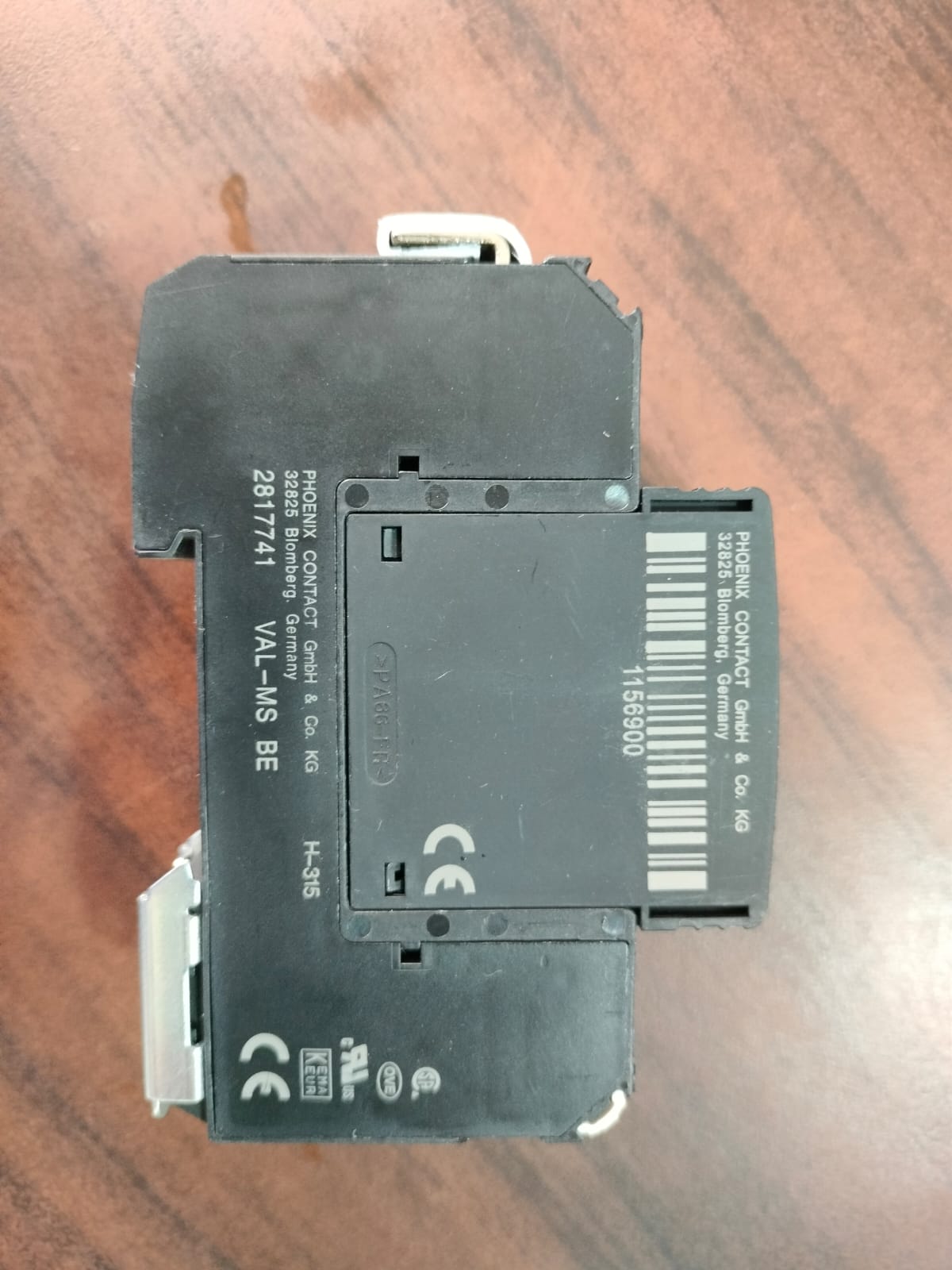

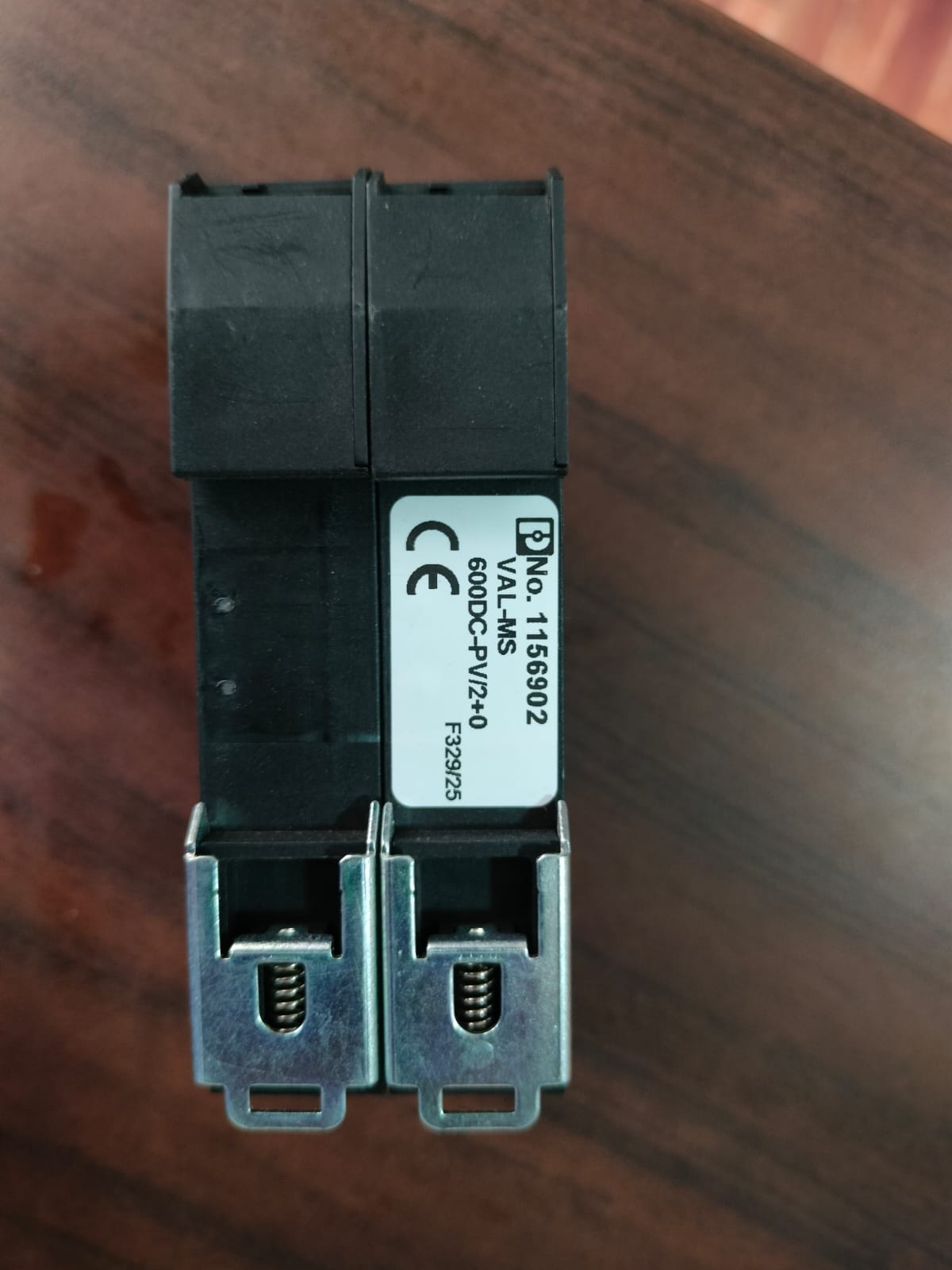

DC SPD 2 Pole 600V Type 2, VAL-MS 600DC PV/2+0 Phoenix Contact 1156902

Maximum continuous operating voltage UCPV 585 V DC ((DC+/DC-) - PE)
1170 V DC (DC+ - DC-)
Open circuit voltage UOCSTC 485 V DC ((DC+/DC-) - PE)
970 V DC (DC+ - DC-)
Short-circuit current rating ISCPV 2000 A
Continuous operating current ICPV < 20 μA
Rated load current IL 80 A
Residual current IPE ≤ 20 μA DC
≤ 250 μA AC
Standby power consumption PC ≤ 25 mVA
Nominal discharge current In (8/20) μs 15 kA
Maximum discharge current Imax (8/20) μs 40 kA
Impulse discharge current (10/350) μs
Peak value Iimp
Charge
Specific energy
5 kA
2.5 As
6.25 kJ/Ω
Total discharge current Itotal (8/20) μs 40 kA
Voltage protection level Up (DC+) - (DC-) ≤ 3.7 kV
Voltage protection level Up (DC+/DC-) - PE ≤ 1.9 kV
Residual voltage Ures (DC+) - (DC-) ≤ 3.7 kV (at In)
≤ 3.1 kV (at 5 kA)
≤ 3.5 kV (at 10 kA)
≤ 4 kV (at 20 kA)
≤ 4.6 kV (at 30 kA)
≤ 5 kV (at 40 kA)
Residual voltage Ures (DC+/DC-) - PE ≤ 1.9 kV (at In)
≤ 1.5 kV (at 5 kA)
≤ 1.7 kV (at 10 kA)
≤ 2 kV (at 20 kA)
≤ 2.3 kV (at 30 kA)
≤ 2.5 kV (at 40 kA)
Response time tA ≤ 25 ns
Insulation resistance Riso > 5 GΩ (at 500 V DC)

Datasheet of DC SPD 600V Type 2,  VAL-MS 600DC PV/2+0 Phoenix Contact 1156902
