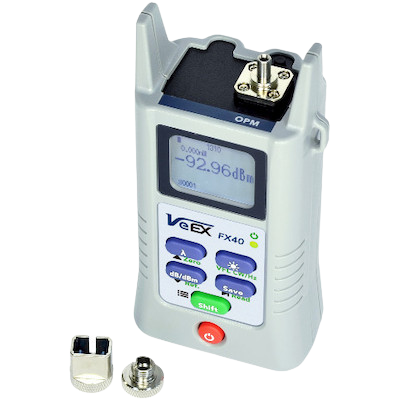

VeEX FX40, OPTICAL POWER METER, STANDARD OPM, +7dBm -65dBm FTTH Tools
Brand: VeEx Inc
Category: FTTH, Optical Tools & Instruments
VeEX FX40 is a single device that can combine several test functions for fiber optic network testing and measurement. This device is used to measure the power transferring in the optical fiber.
- Singlemode and Multimode testing
- Built-in universal 2.5 mm tip sleeve
- PON, Telecom, CATV and LAN/WAN applications
- Dual wavelength laser source and power meter options
- High accuracy and wide dynamic range
- Save OPM measurements (>100 single results)
- Transfer stored results to a PC or upload results to Fiberizer Cloud via micro USB interface for report generation and printing
- Reference power level setup and recall
- Splash resistant keypad and chassis design
- High contrast display - Visible outdoors and backlight for indoor or low light conditions
- Alkaline or Rechargeable battery option with Auto power off
- Field interchangeable optical adaptors support multiple connector types and allow easy access for cleaning
Optical Power Meter (OPM)
- Calibrated wavelengths: 850, 1300, 1310, 1490, 1550, 1625, 1650 nm
- Power Level Range: -65 to +7 dBm
- Accuracy1,2: up to ±0.2 dB or 5%
- Modulation and Wave ID detection: Not supported

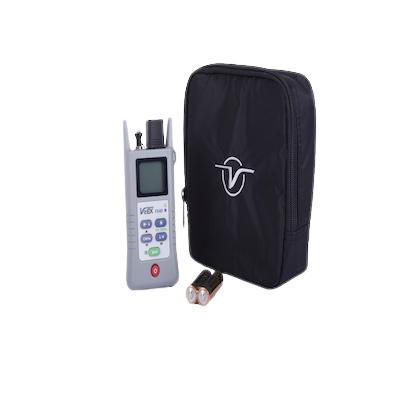

What’s in the box:
- 1 x OPM Device
