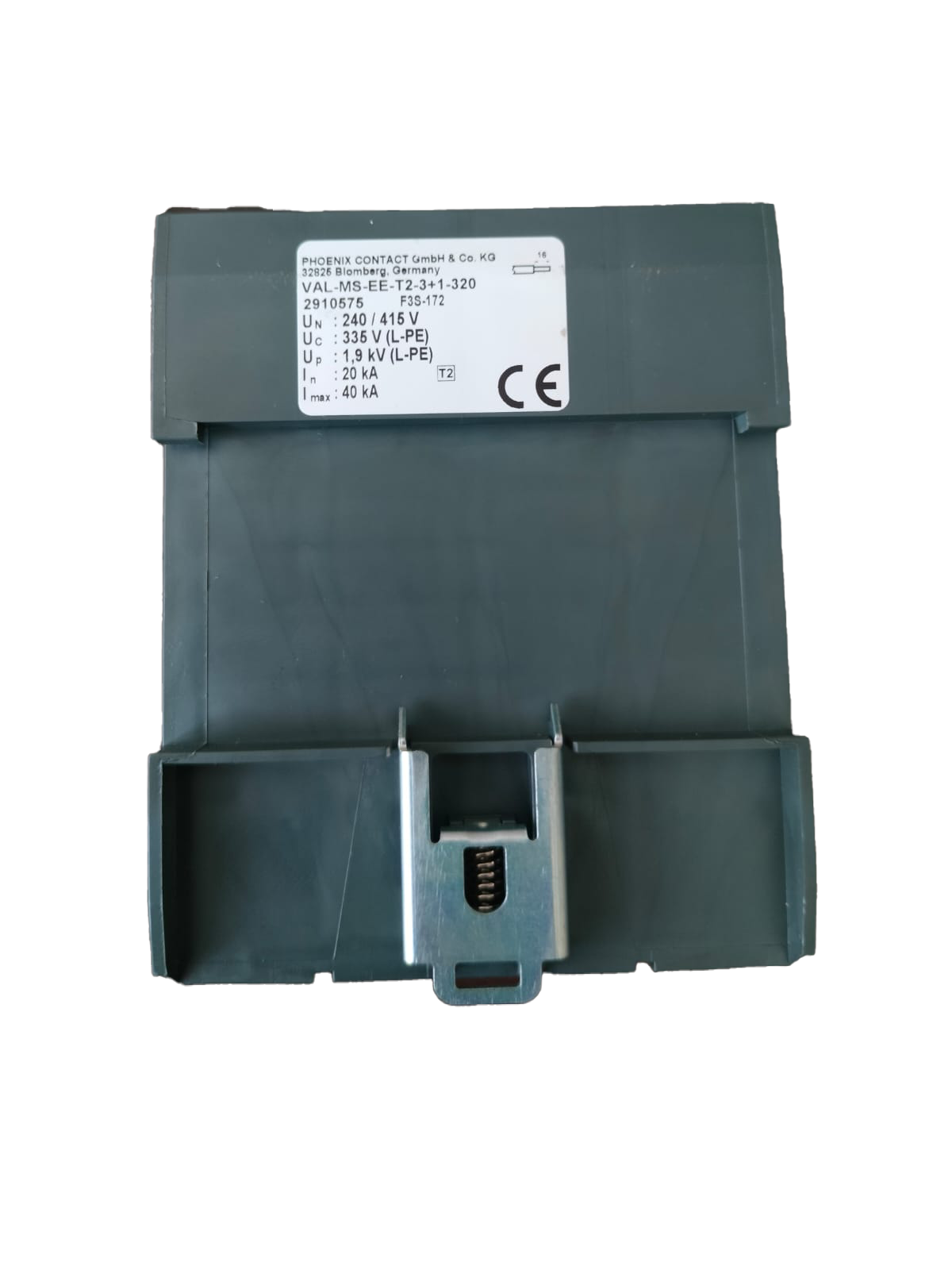

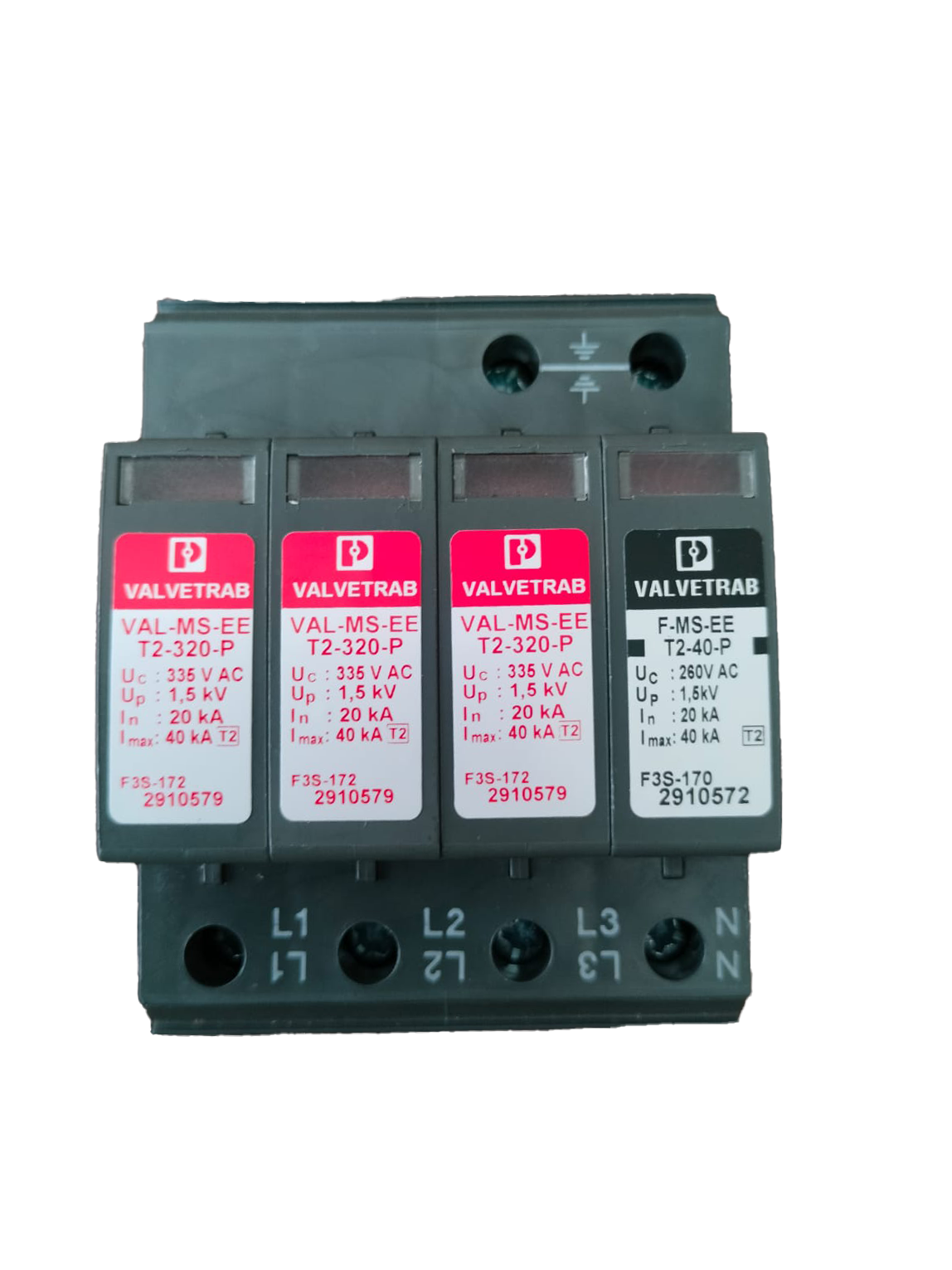

3 phase 4P SPD Phoenix Contact German Brand Type 2 Surge ArresterVAL-MS-EE-T2-3+1-320 2910575

Brand: Phoenix Contact
Model No.:2910575
Surge protective device, 4-channel (in 3+1 circuit), for installation on NS 35/7,5 voltage: 230 V AC

~~Rs. 8,150.00~~ Rs. 5,705.00

Add to Cart

Nominal voltage U_N	240/415 V AC (TN-S)
Nominal voltage U_N	240/415 V AC (TT)
Maximum continuous operating voltage U_C(L-N)	335 V AC
Rated load current I_L	80 A
Nominal discharge current I_n (8/20) µs	20 kA
Maximum discharge current I_max (8/20) µs	40 kA
Follow current interrupt rating I_fi (N-PE)	100 A
Short-circuit current rating I_SCCR	25 kA
Voltage protection level U_p (L-N)	≤ 1.6 kV

Mode of protection	L-N
	L-PE
	N-PE
Direction of action	3L-N & N-PE
Nominal voltage U_N	240/415 V AC (TN-S)
Nominal voltage U_N	240/415 V AC (TT)
Nominal frequency f_N	50 Hz (60 Hz)
Maximum continuous operating voltage U_C(L-N)	335 V AC
Maximum continuous operating voltage U_C (L-PE)	335 V AC
Maximum continuous operating voltage U_C (N-PE)	260 V AC
Rated load current I_L	80 A
Protective conductor current I_PE	≤ 5 µA
Standby power consumption P_C	≤ 450 mVA
Nominal discharge current I_n (8/20) µs	20 kA
Maximum discharge current I_max (8/20) µs	40 kA
Follow current interrupt rating I_fi (N-PE)	100 A
Short-circuit current rating I_SCCR	25 kA
Voltage protection level U_p (L-N)	≤ 1.6 kV
Voltage protection level U_p (L-PE)	≤ 1.9 kV
Voltage protection level U_p (N-PE)	≤ 1.5 kV
Residual voltage U_res (L-N)	≤ 1.6 kV (at I_n)
	≤ 1.5 kV (at 10 kA)
	≤ 1.3 kV (at 5 kA)
	≤ 1.1 kV (at 3 kA)
Residual voltage U_res (L-PE)	≤ 1.9 kV (at I_n)
	≤ 1.5 kV (at 10 kA)
	≤ 1.3 kV (at 5 kA)
	≤ 1.2 kV (at 3 kA)
Residual voltage U_res (N-PE)	≤ 0.4 kV (at I_n)
	≤ 0.25 kV (at 10 kA)
	≤ 0.15 kV (at 5 kA)
	≤ 0.1 kV (at 3 kA)
TOV behavior at U_T (L-N)	415 V AC (5 s / withstand mode)
TOV behavior at U_T (L-N)	440 V AC (120 min / safe failure mode)
TOV behavior at U_T (N-PE)	1200 V AC (200 ms / withstand mode)
Response time t_A (L-N)	≤ 25 ns
Response time t_A (L-PE)	≤ 100 ns
Response time t_A (N-PE)	≤ 100 ns
Max. backup fuse with V-type through wiring	80 A (gG)
Max. backup fuse with branch wiring	125 A (gG)
