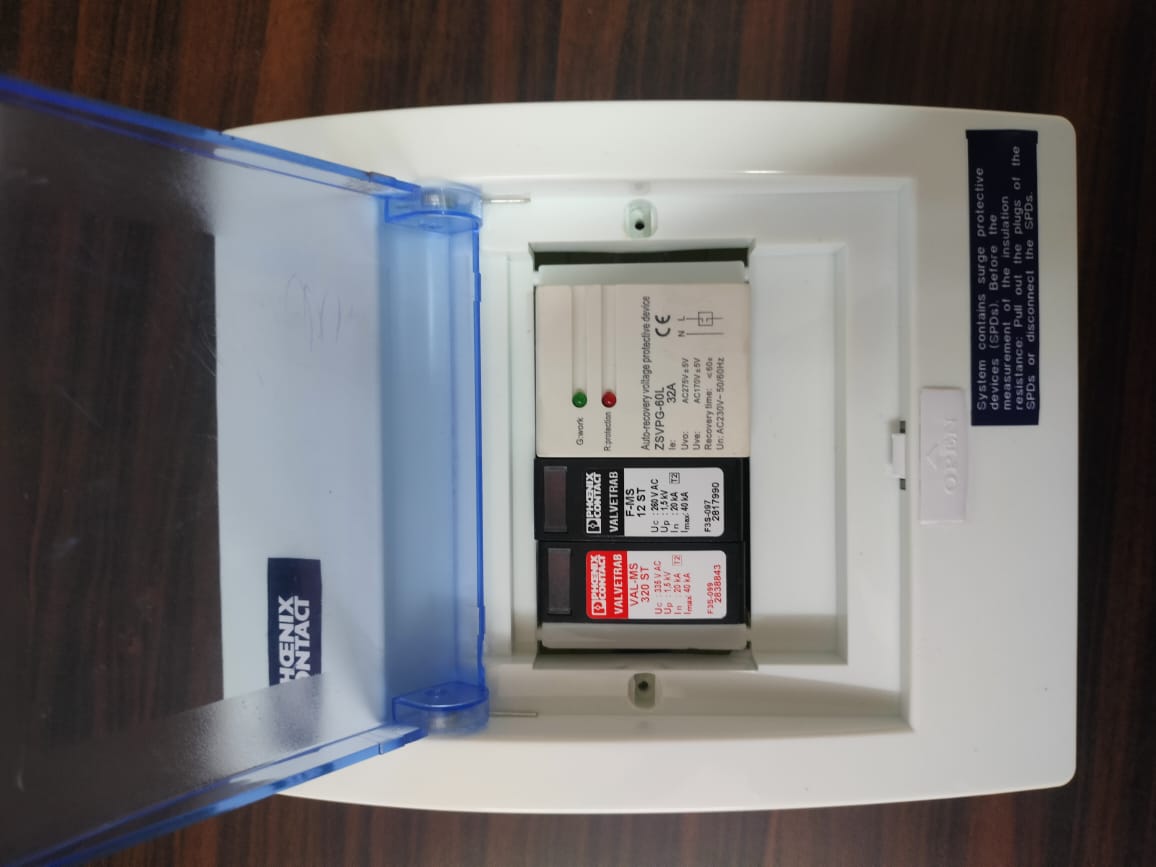

32A Analog 2 Pole Surge and Voltage Protection Device SVP with Phoneix SPD for Single Phase SVP-01
.jpeg)
Brand: Phoenix Contact
Category: Surge Protection Devices
32A Analog 2 Pole Surge and Voltage Protection Device SVP with Phoneix SPD for Single Phase
- 32A Analog 2 Pole Single Phase Auto Recovery Voltage cut off device
- Over-voltage cut-off value: >270VAC+/-5V
- Under-voltage cut-off value: <170VAC+/-5V
- Phoneix Contact 2 Pole Type 2 Single Phase SPD
- Automatic Voltage Regulation(Under Voltage and Over Voltage Protection)
- Maximum current protection 32A
- Recovery time < 60s
- Rated AC voltage 220V and frequency 50Hz
- Over-voltage action cut-off value: >270VAC+/-5V
- Under-voltage action cut-off value: <170VAC+/-5V
- Type 2, SPN VAL-MS 320/1+1/FM Phoenix SPD 5792119
- Surge protective device for 3-conductor power supply systems (L1, N, PE)
- Comprised of two individual base elements, connected with one MPB bridge, FM contact, and protective plugs, for mounting on NS 35.
