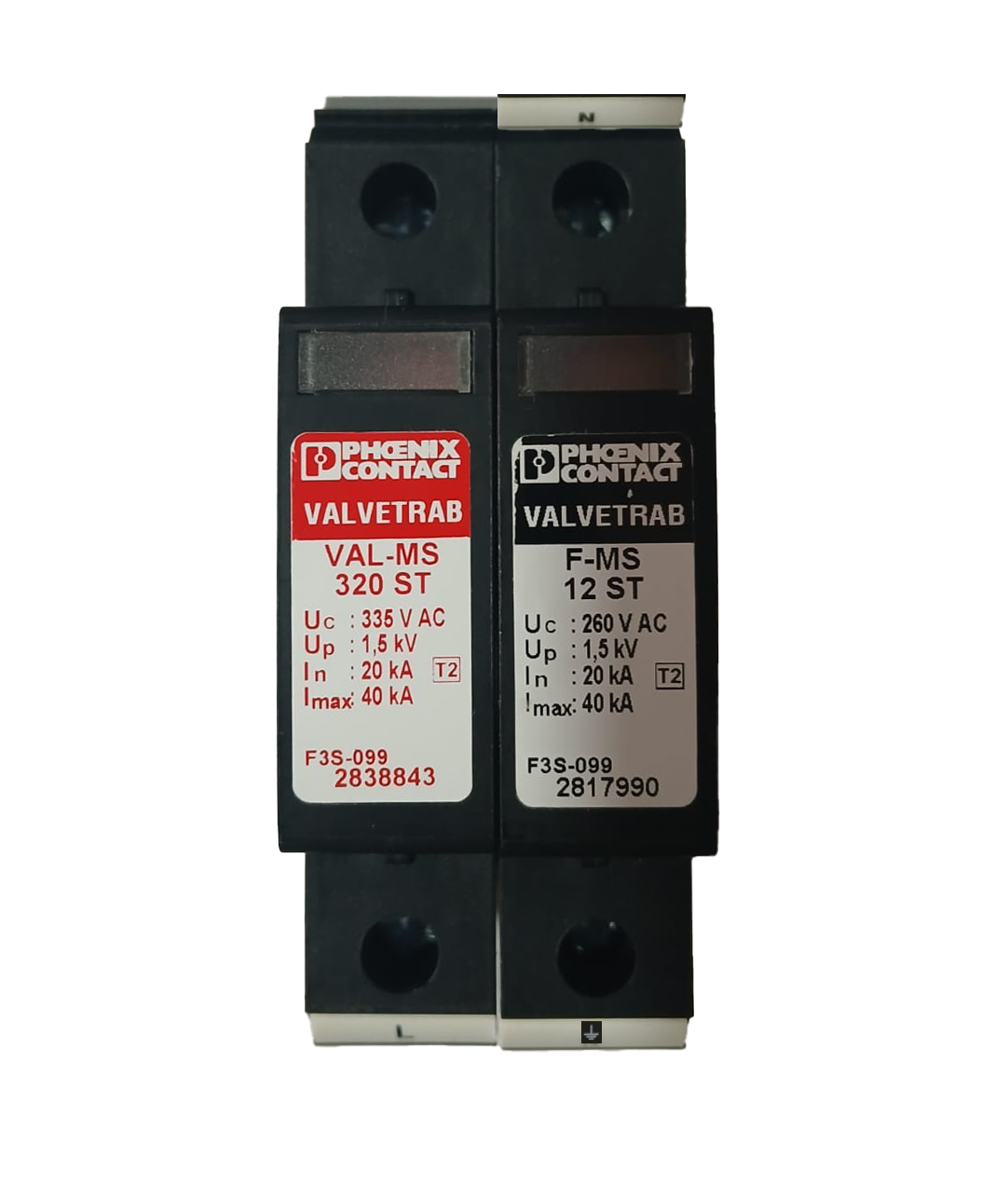

Type 2, SPN VAL-MS 320/1+1/FM Phoenix SPD 5792119
Brand: Phoenix Contact
Category: Surge Protection Devices
- Model :5792119
- Single Phase Type 2 Surge arrester for 3-conductor power supply systems (L1, N, PE), consisting of a base element with remote indication contact and protective connectors, for mounting on NS 35.
- Surge protective device for 3-conductor power supply systems (L1, N, PE)
- Comprised of two individual base elements, connected with one MPB bridge, FM contact, and protective plugs, for mounting on NS 35.
|
Nominal Voltage UN |
240/415 V AC (TN-S) |
|
240/415 V AC (TT) |
|
|
Nominal Frequency fN |
50 Hz (60 Hz) |
|
Maximum continious operating voltage Uc (L-N) |
335 V AC |
|
Maximum continious operating voltage Uc (L-PE) |
335 V AC |
|
Maximun continious operating voltage Uc (N-PE) |
260 V AC |
|
Residual current lPE |
≤ 5 µA |
|
Standby power consumption PC |
≤ 150 mVA |
|
Nominal discharge current In (8/20) µs |
20 kA |
|
Maximum discharge current Imax (8/20) µs |
40 kA |
|
Follow current interrupt rating Ifi (N-PE) |
100 A |
|
Short-circuit current rating ISCCR |
25 kA |
|
Voltage protection level Up (L-N) |
≤ 1.5 kV |
|
Voltage protection level Up (L-PE) |
≤ 1.8 kV |
|
Voltage protection level Up (N-PE) |
≤ 1.5 kV |
|
Residual voltage Ures (L-N) |
≤ 1.5 kV (at In) |
|
≤ 1.3 kV (at 10 kA) |
|
|
≤ 1.2 kV (at 5 kA) |
|
|
≤ 1.1 kV (at 3 kA) |
|
|
Residual voltage Ures (L-PE) |
≤ 1.8 kV (at In) |
|
≤ 1.4 kV (at 10 kA) |
|
|
≤ 1.2 kV (at 5 kA) |
|
|
≤ 1.1 kV (at 3 kA) |
|
|
Residual voltage Ures (N-PE) |
≤ 0.4 kV (at In) |
|
≤ 0.25 kV (at 10 kA) |
|
|
≤ 0.15 kV (at 5 kA) |
|
|
≤ 0.1 kV (at 3 kA) |
|
|
TOV behavior at UT (L-N) |
415 V AC (5 s / withstand mode) |
|
440 V AC (120 min / safe failure mode) |
|
|
TOV behavior at UT (N-PE) |
1200 V AC (200 ms / withstand mode) |
|
Response time tA (L-N) |
≤ 25 ns |
|
Response time tA (L-PE) |
≤ 100 ns |
|
Response time tA (N-PE) |
≤ 100 ns |
|
Max. backup fuse with branch wiring |
125 A (gG) |
