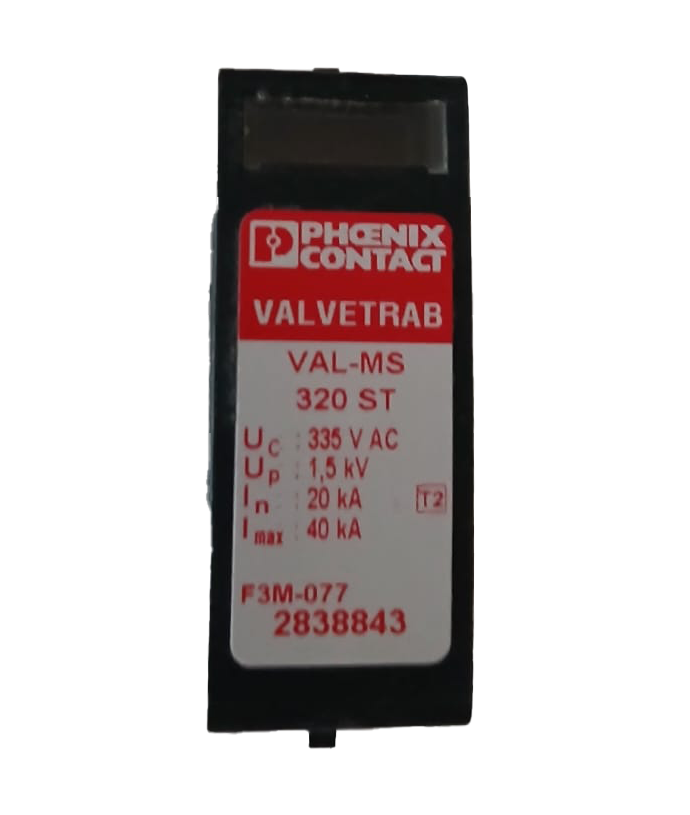

Type 2, Phase Cartridge, plug for VAL MS 320 ST Phoenix SPD 2838843

Type 2, Phase Cartridge, plug for VAL MS 320 ST Phoenix SPD 2838843

Type 2, Phase Cartridge, plug for VAL MS 320 ST Phoenix SPD 2838843
Brand: Phoenix Contact
Category: Surge Protection Devices
  • Model: 2838843
  • Replacable Plug/catridge for Phase of Val-MS SPD
Rs. 2,787.00 Rs. 1,679.00
Add to Cart
  • Surge protection connector type 2
  • With high-capacity varistor for VAL-MS base element, thermal monitoring, visual fault warning.
  • Design: 320 V AC
  • Connection method: pluggable
  • SPD Type : 4CA
  • Power distribution system : Single phase
  • Mode of protection : L-N

Type 2 surge protection plug - VAL-MS 320 ST

Nominal Voltage UN

240/415 V AC (TN)

240/415 V AC (TT)

Nominal Frequency fN

50 Hz (60 Hz)

Maximum continious voltage Uc

335 V AC

Residual current IPE

≤ 0.45 mA

Standby power consumption PC

≤ 150 mVA

Nominal discharge current In (8/20) µs

20 kA

Maximum discharge current Imax (8/20) µs

40 kA

Short-circuit current rating ISCCR

25 kA

Voltage protection level Up

≤ 1.5 kV

Residual voltage Ures

≤ 1.5 kV (at In)

≤ 1.3 kV (at 10 kA)

≤ 1.2 kV (at 5 kA)

≤ 1.1 kV (at 3 kA)

TOV behavior at UT

415 V AC (5 s / withstand mode)

440 V AC (120 min / safe failure mode)

Response time tA

≤ 25 ns

Max. backup fuse with branch wiring

125 A (gG)
