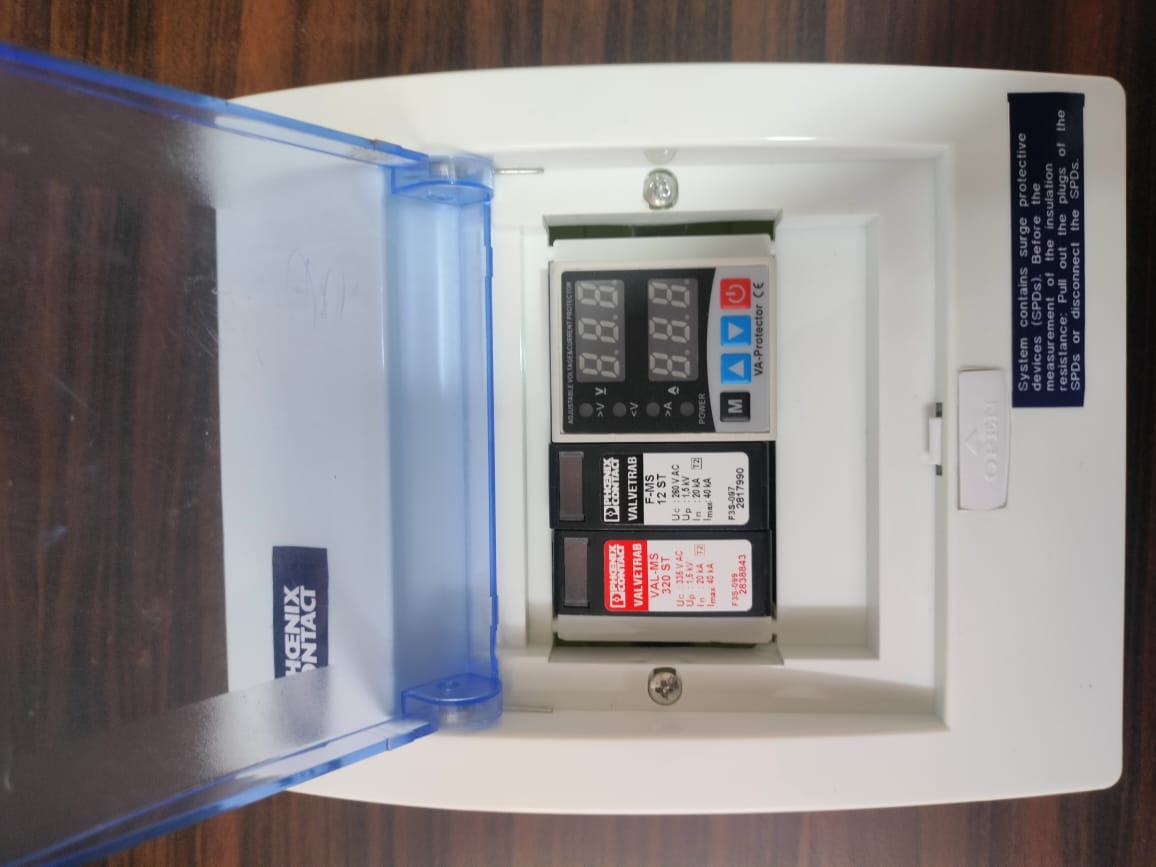

63A Digital 2 Pole Surge and Voltage Protection Device SVP with Phoneix SPD for Single Phase SVP-02
Brand: Phoenix Contact
Category: Surge Protection Devices
63A, Digital, 2 Pole, Surge and Voltage Protection Device, SVP with Phoneix SPD for Single Phase
- 63A,Digital, 2 Pole, Single Phase, Auto Recovery Voltage cut off device
- Over Voltage Range : 230 - 300 V (adjustable)
- Under Voltage Range : 140 - 210 V (adjustable)
- Phoneix Contact, 2 Pole, Type 2, Single Phase SPD
- Automatic Voltage and Current Regulation(Under Voltage/current and Over Voltage/current Protection)
- Digital voltage/Current protector relay and breaker
- Maximum current protection 63A
- Rated AC voltage 223V and frequency 50Hz
- Over Voltage Range : 230 - 300 V (adjustable)
- Under Voltage Range : 140 - 210 V (adjustable)
- Current Output Range : 1-40A (adjustable)
- Voltage Power Off Time: 2s (set 1- 400s adjustable)
- Current Power Off Time: 2s (set 1- 30s adjustable)
- Voltage & Current Recovery Time: 30s (set 1-30s adjustable)
- Type 2, SPN VAL-MS 320/1+1/FM Phoenix SPD 5792119
- Surge protective device for 3-conductor power supply systems (L1, N, PE)
- Comprised of two individual base elements, connected with one MPB bridge, FM contact, and protective plugs, for mounting on NS 35.
