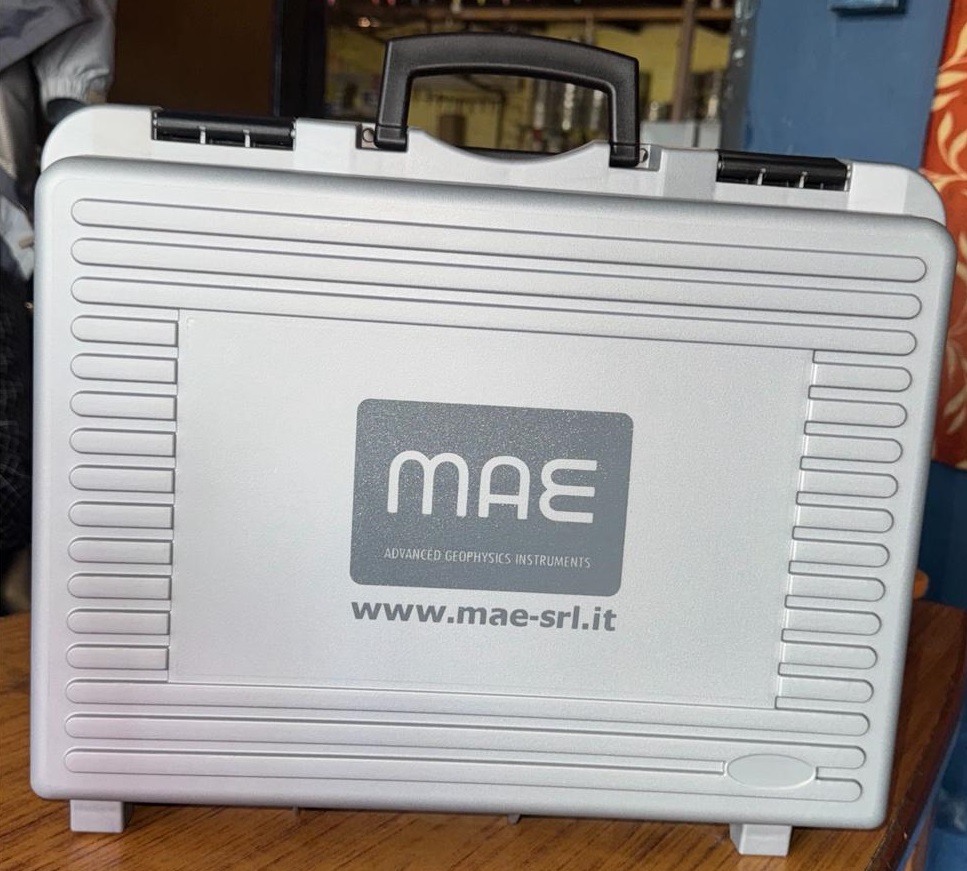

MAE CHRONOSONIC Ultrasonic Pulse Velocity through Concrete
Brand: Others
Category: Lab Equipments

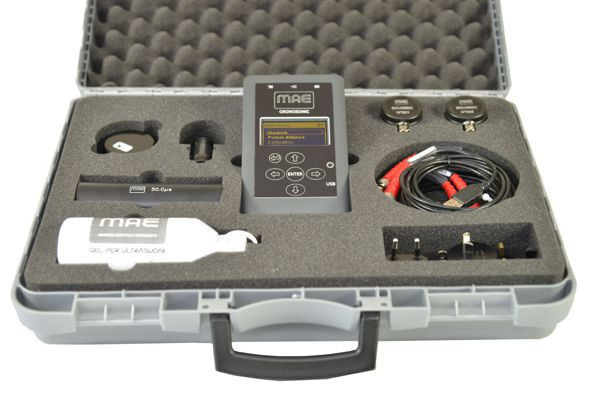

Cronosonic is an instrument for ultrasonic pulse velocity through transparency which can be used to investigate poles, truss, diaphrams, laboratory samples and many other structures made of concrete or stone. It performs measurements with direct, indirect and semi direct methods. Very compact instrument is provided with display for realtime visualization of the time of fly (TOF) and velocity of investigated material.
- Number of channels 2 TX/RX
- Internal storage: 250 measures
- Operating temperature: -20/+80 °C
- Power supply: Rechargeable internal battery
- Interface: mini-USB charge / data download; BNC to oscilloscope
- Display: 3" visualization of time of fly (T.O.F.) and speed
- Reference standards: ASTM C597 - Standard Test Method for Pulse Velocity Through Concrete
- Resolution: 0.1 µs
- Measuring range: > 5000 µs
- Filter bandwidth: 20-80KHz
- Amplifier gain: 50dB
- Minimum trigger in: 145mV
