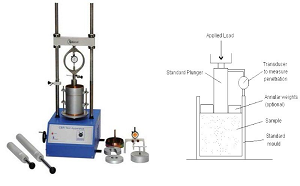

CBR Test Apparatus
Brand: Others
Category: Lab Equipments
- Max. Load: 50kN
- Test Speed: 1.27mm/min
- Load measurement: by load ring, fitted with 0.001mm high resolution dial gauge to fulfill the standard requirements
- Complete with adjustable penetration piston and dial gauge 30mm travel x0.001mm division
California Bearing Ratio (CBR) test is an important test to ascertain the soil strength to determine its viability for engineering purposes. This test computes the relative strength of the soil specimen against a standard test sample. This test can be employed to determine the viability of the subgrade as well as the materials used in the sub-base and base course. The CBR value can be used to evaluate the thickness of the pavement.
