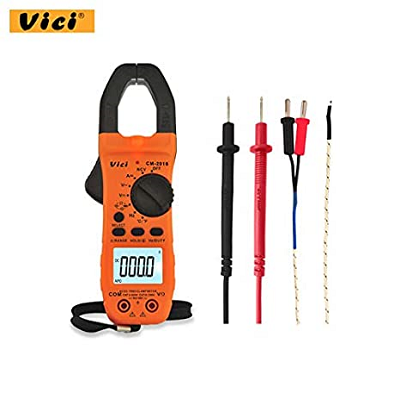

Vici Clamp Meter CM-2016
Brand: Vici
Category: Digital Meters
(Out of Stock)
Vici Clamp Meter CM-2016 can be used to measure DC voltage, AC voltage, DC current, AC current, resistance, capacitance, frequency, non-contact voltage, temperature, diode and continuity tests.
- Clamp opens 28mm
- Portable design, easy use
- Clamp light, backlight display
- Large LCD display makes reading clear
- CE standard design, improves the safety of the test
- Full function protection, strong anti-interferential performance
- Duty cycle test, REL test, NCV, TRMS test, data hold, APO function
- Manual or Auto range operation method
Technical Data:
|
Basic function |
Range |
Accuracy |
|
DCV |
600mV/6V/60V/600V |
+/- (0.5%+3) |
|
ACV |
6V/60V/600V |
+/- (0.8%+5) |
|
DCA |
60A/600A/800A |
+/- (1.5%+5) |
|
ACA |
60A/600A/800A |
+/- (1.5%+5) |
|
Resistance |
600/6k/60k/600k/6M/60M ohm |
+/- (0.8%+3) |
|
Capacitance |
6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF |
+/- (3.5%+20) |
|
Frequency |
10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz |
+/- (0.1%+3) |
|
Temperature |
(-40 to 1000 )℃, (-40 to 1832 ) ℉ |
+/- (1.0%+5) |
Special Function:
|
Model |
CM-2016 |
|
Diode test |
YES |
|
Continuity test |
Less than 50 ohm |
|
Low battery indicator |
Approx. less than 2.6 V |
|
Data hold |
YES |
|
NCV test |
YES |
|
Auto power off |
About 15 minutes |
|
True RMS test |
YES |
|
Function protection |
YES |
|
Clamp light |
YES |
|
Backlight display |
YES |
|
Input impedance |
10M ohm |
|
Sampling rate |
3 times/s |
|
AC frequency response |
Current 40 to 100Hz / Voltage 40 to 2000Hz |
|
Operation method |
Auto or manual range |
|
Max display |
6000 |
|
Clamp opens |
28mm |
|
Battery |
3V (2*AAA battery) |

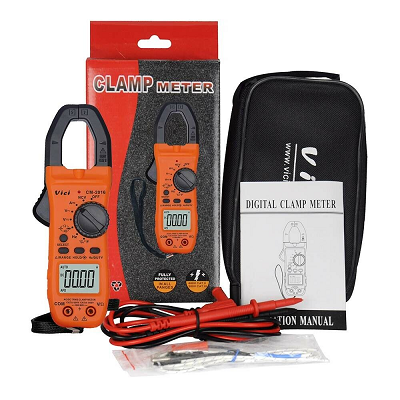

What’s in the box:
- 1 x Digital Clamp Meter
- 1 x Thermocouple
- 1 x Pair of test leads
- 1 x Cloth Bag
- 1 x User Manual
