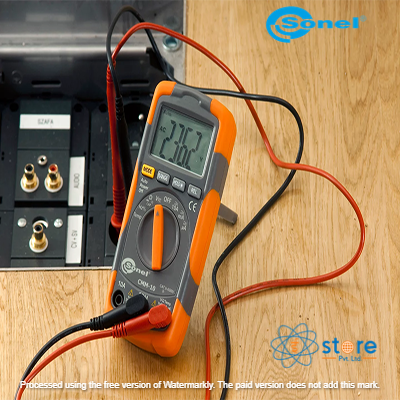

Sonel Digital Multimeter CMM-10
Sonel Digital Multimeter CMM-10

Sonel Digital Multimeter CMM-10

Sonel Digital Multimeter CMM-10
Brand: Sonel
Category: Digital Meters

Simple and reliable digital multimeter Sonel CMM-10 designed to test basic parameters such as DC and AC voltage, AC and DC current, frequency, capacitance, duty cycle and temperature. It is a small device with a wide range of applications  dedicated to residential and commercial electricians.

Rs. 12,745.00 Rs. 9,214.00
Add to Cart

Simple and reliable digital multimeter Sonel CMM-10 designed to test basic parameters such as DC and AC voltage, AC and DC current, frequency, capacitance, duty cycle and temperature. It is a small device with a wide range of applications dedicated to residential and commercial electricians. Due to the possibility of measuring the temperature, heating and air conditioning technicians will also appreciate its advantages. By combining pocket-sized dimensions, intuitive operation and a range of practical functions with an exceptionally good price, the instrument will meet the expectations of beginners and advanced users in the electrical industry and elsewhere. Large digits on the illuminated display ensure that the result can be read at a glance, even in poorly lit areas. As a result, the instrument ensures reliability whatever the operating conditions. It is the ideal solution for every electrician, fitter and maintenance technician. 11 Measuring functions are as follows

  • AC and DC voltage
  • AC and DC current
  • resistance
  • capacitance
  • frequency
  • duty cycle
  • temperature
  • diode test
  • continuity





Measurement Function Range Resolution Accuracy
AC / DC voltage up to 600 V from 0.1 mV from ±(0.5% m.v. + 2 digits) for DC, from ±(1.2% m.v. + 3 digits) for AC
AC / DC current up to 10.00 A from 0.1 μA from ±(1.0% m.v. + 3 digits) for DC, from ±(1.5% m.v. + 5 digits) for AC
Resistance up to 40.00 MΩ from 0.1 Ω from ±(1.0% m.v. + 2 digits)
Frequency up to 10.00 MHz from 0.001 Hz from ±(1.2% m.v. + 3 digits)
Capacitance up to 100.0 µF from 0.01 nF from ±(3.0% m.v. + 5 digits)
Duty cycle (%) 0.1...99.9% 1% ±(1.2% m.v. + 2 digits)
Temperature -20...+760°C 1°C ±(3% m.v. + 5°C)
-4...+1400°F 1°F ±(3% m.v. + 9°F)
“m.v.” - measured value


Basic features:
Display: readout 5000 with function indicators
HOLD
Manual / automatic range selection

Advanced features:
Relative measurement
Continuity / diode test

Other features:
Easy access to A / mA fuses
Auto-off
Empty battery indication
Beeper
Display:
             Type: segment-based
             Display backlight
