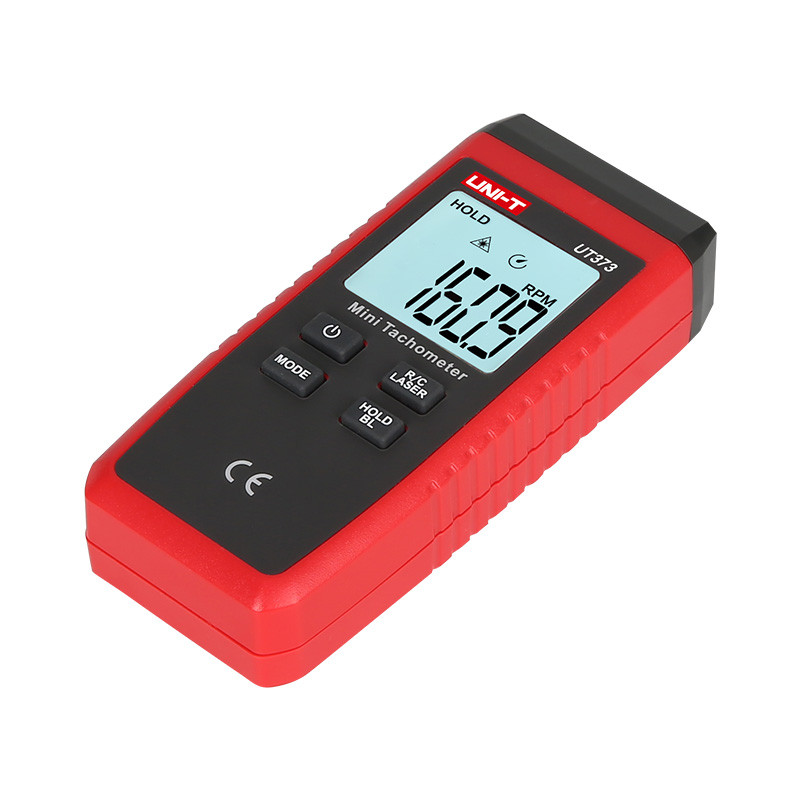

UNI-T Mini Non-Contact Tachometer UT373 (RPM and Revolution Count)

UNI-T Mini Non-Contact Tachometer UT373 (RPM and Revolution Count)

Brand: UNI-T

Category: Digital Meters

UT373 Tachometer is a digital non-contact tachometer used to measure rotation speed of motors and other machines. This device is able to display results ialn RPM or revolution count. This portable device is able to safely measure rotational objects through a non-intrusive method.

Features of UT373 Mini Tachometer

Certificates: CE, UKCA
Auto range
Up to 99999 display; overload diaplay, “OL”
RPM measurement and revolution count
Max/Min, data hold
Singal trigger/laser-on indication
Low battery/auto power off indication
LCD backlight
Reflective Sticker is Provided

Specifications of UT373 Mini Tachometer
Specifications	Range	Resolution	Accuracy
RPM measurement	10.0~9999.9RPM	0.1	±(0.04%+2)
	10000~99999RPM	1
Counting measurement	0~99999 counts	1	±1
Features
Auto range	√
Auto power off	√
Low battery indication	√
Laser-on indication	√
Data hold	√
MAX/MIN	√
Rotating speed/count function switching	√
Overload indication	√
LCD backlight	√
Refresh rate	1s to 7s (>120rpm for 1s)
Sensor type	Photodiode and laser tube
Target distance	50mm~200mm
Measuring angle	±30° from perpendicular
Drop test	1m
General Characterisitics
Power	1.5V battery (R03) x 3
Display	5-digit segment code; 99999 max display
Product color	Red and grey
Product net weight	85g (excluding battery)
Product size	183.8mm x 56mm x 34mm
Standard accessories	Batteries, reflective tape
