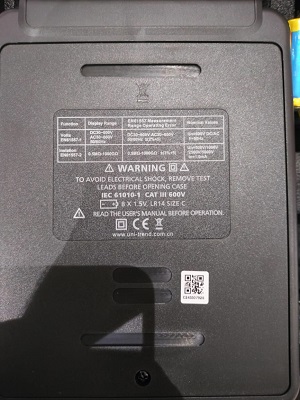

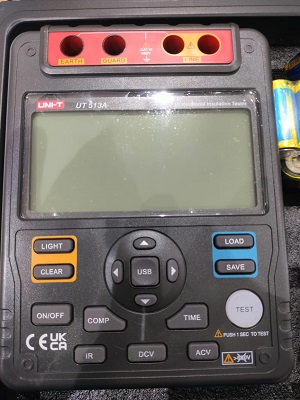

UNI-T 5KV Insulation Resistance Tester UT513A unity Megger
Brand: UNI-T
Category: Insulation & Earth Testers (Meggers)
Product: Insulation Resistance Tester
Brand:UNI-T
Model:UT513A
UT513A is the model of UT510 series testers which can measure insulation resistance of large transformers, generators, high-voltage motors and more. UT510 series can also measure PI, DAR and other important specifications. UT513A can produce test voltage up to 5kV.
Features:
● Large 9999 display with 30-segment analog bar graph
● Continuous measurement mode
● Auto power off
● Backlight
● Auto current discharge and high-voltage output alarm
● Time measurement mode, auto measure within 15 minutes
● Low battery and over range indications
|
Specifications
|
Range | UT513A | |
| Insulation resistance (Ω) | Test voltages | 500V~5000V | 0%~20% |
| 500V | 0.5MΩ~20GΩ | ±(3%+5) | |
| 1000V | 1MΩ~40GΩ | ±(3%+5) | |
| 2500V | 2.5MΩ~100GΩ | ±(3%+5) | |
| 5000V | 5MΩ~1000GΩ | ±(3%+5) | |
| DC voltage (V) | 600V | ±(2%+3) | |
| AC voltage (V) | 600V | ±(2%+3) | |
| Short-circuit current | >3mA | ||
| Product size | 202mm x 155mm x 94mm | ||
| Product Weight | 25Kg |
