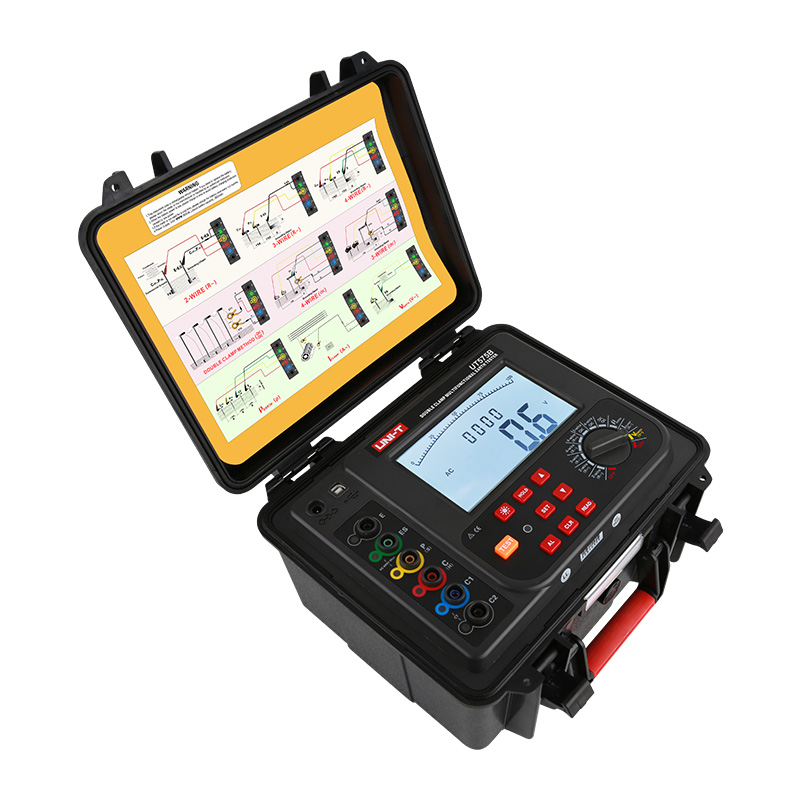

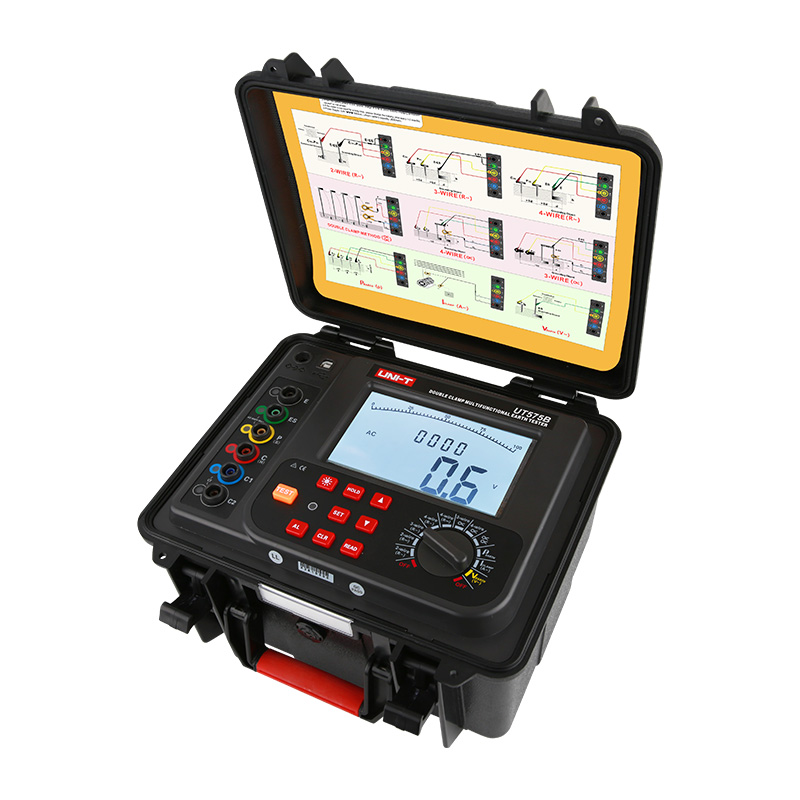

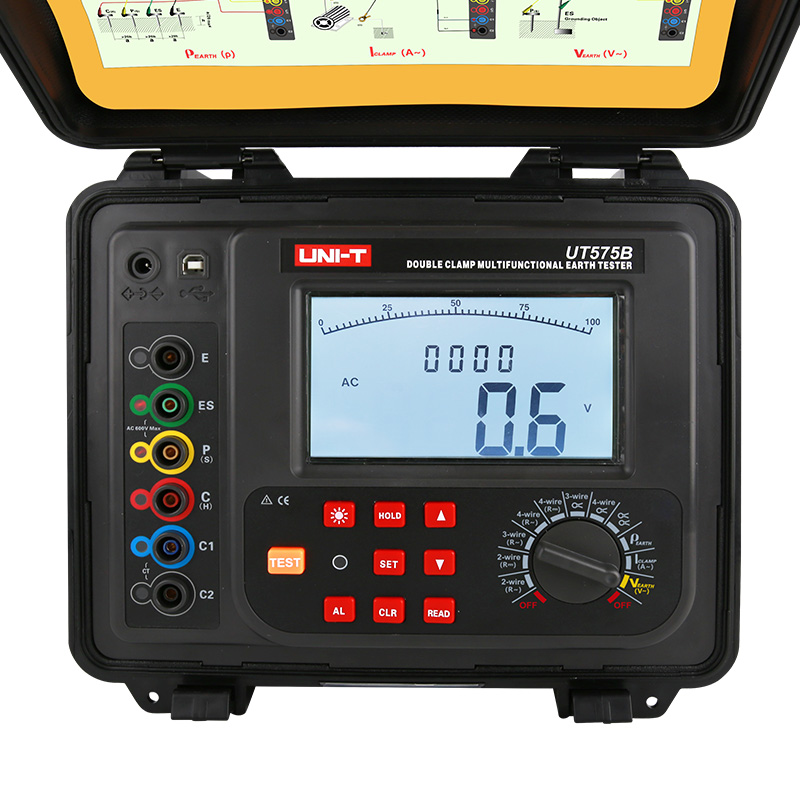

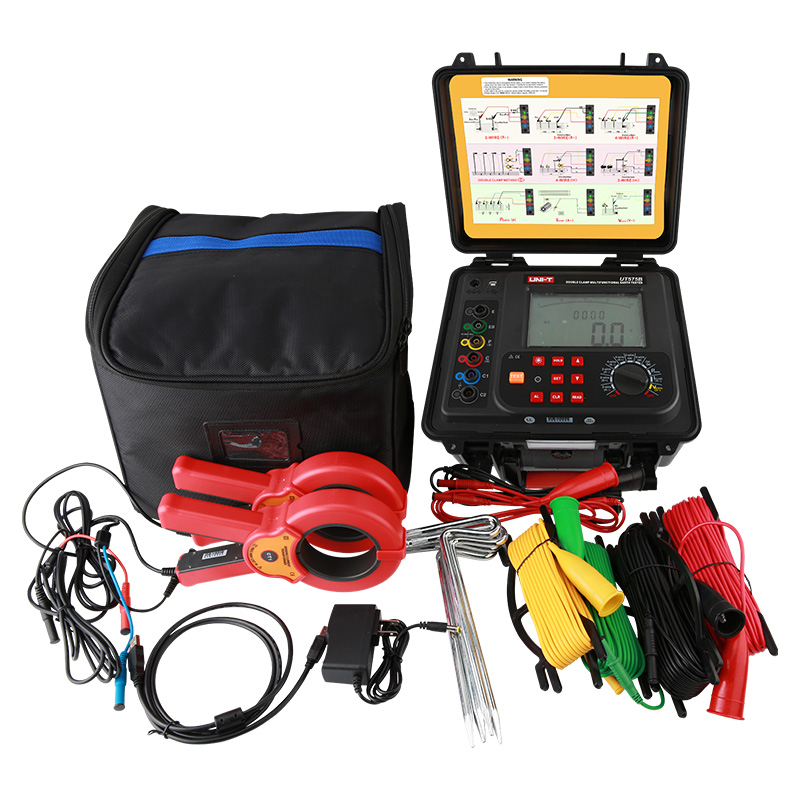

The UT575B double-clamp multifunctional earth tester is a high-end instrument designed for on-site measurement of various ground parameters. It offers advanced digital processing technology, multiple measurement methods, and a large-diameter current clamp for accurate readings. With storage, clock, Bluetooth, and USB capabilities, it facilitates data management and analysis. Widely used in industries like power, telecommunications, and construction.
Specifications
| Models | UT575B |
| Earth resistance (2/3/4 wire testing) | 300.00kΩ |
| Earth resistance (selective method) | 3000Ω |
| Earth resistance (double clamp method) | 100Ω |
| Soil resistivity | 9000kΩ |
| AC earth voltage | 100.0V |
| AC earth current | 600.0A |
| Test Frequency | 128Hz/111Hz/105Hz/94Hz(AFC Auto) |
| Short circuit test current | AC 250mA max |
| Open circuit test voltage | AC 40V max |
| Manual range | auto range(V & A) |
| Auto power off | ● |
| Low battery indication | ● |
| Data hold | ● |
| Data storage | 2000 |
| LCD backlight | ● |
| Alarm function | ● |
| Full icon display | ● |
| Poor contact display | – |
| Over-range display | ● |
| 2-wire testing | ● |
| 3-wire testing | ● |
| 4-wire testing | ● |
| Disturbance voltage | – |
| Disturbance frequency | – |
| Earth resistance RH and RS test | – |
| Compensating resistance RK test | – |
| Certificates | ROW |
