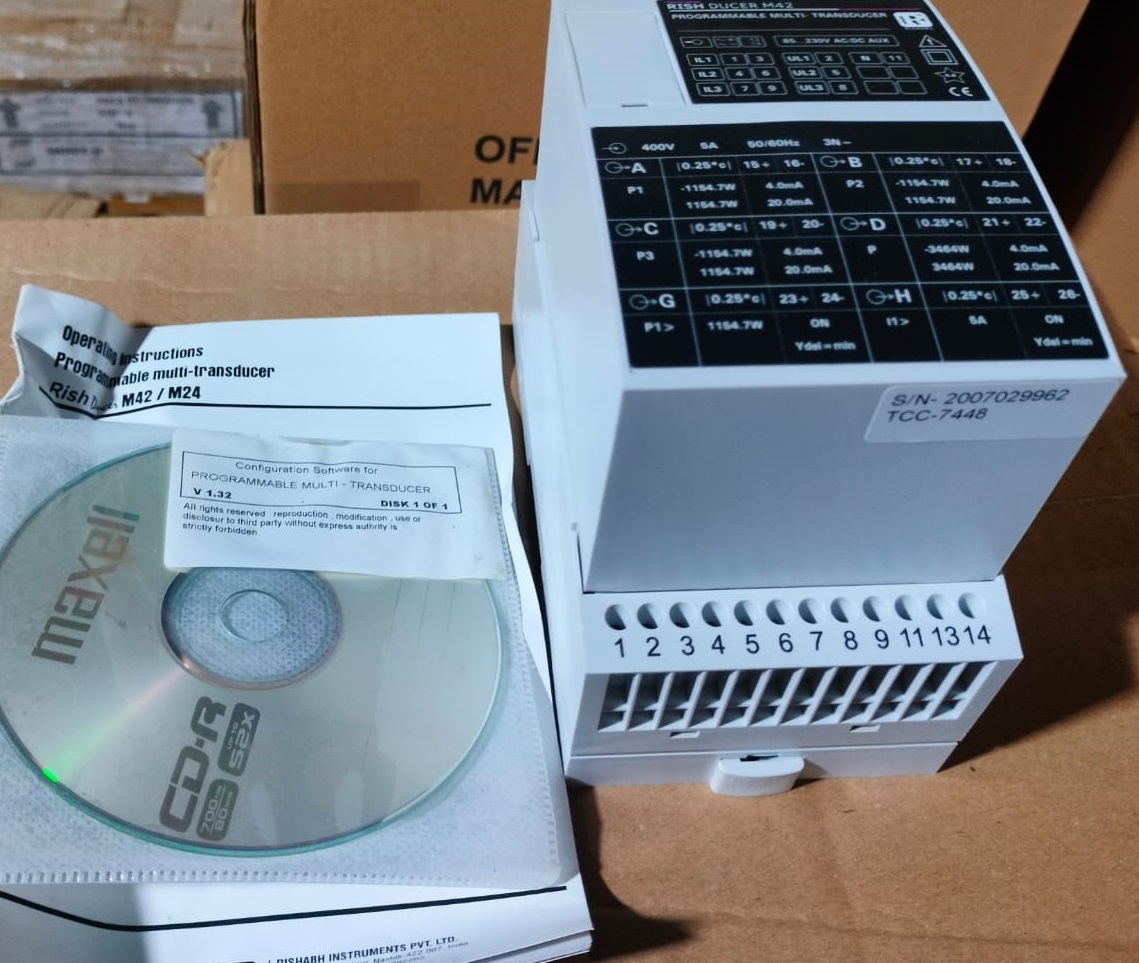

Rish Ducer M42 Rishabh Programmable Multi Transducer
Brand: RISHABH
The Rish Ducer M42 multi-transducers simultaneously measure several variables of an electric power system and process them to produce 2 resp. 4 analogue output signals. The multi-transducers are also equipped with an RS 232 serial interface to which a PC with corresponding software can be connected for programming or accessing and executing useful ancillary functions.
- Model: Rish_Ducer_M42
- For all heavy-current power system variables
- Up to 6 outputs (2A + 4D or 4A + 2D or 2A or 3A)
- Input voltage up to 693 V (phase-to-phase)
- Universal analogue outputs (programmable)
- Simultaneous measurement of several variables of a heavycurrent power system / full supervision of an asymmetrically loaded four-wire power system, rated current 1 to 6 A, rated voltage 57 to 400 V(phase to neutral) or 100 to 693 V (phase-tophase)
- High accuracy: U/I 0.2%, Frequency 0.15% and P 0.25%
- AC/DC power supply/universal (24-60V AC/DC or 85-230V AC/DC)
- Programmable Multi Transducer
- Power Supply: AC/DC power supply/universal (24-80V AC/DC or 85-230V AC/DC)
- 3 Phase 4 Wire
- Input Voltage: Input voltage up to 693 V Input Current: 0-5 A
- 6 outputs (2A + 4D or 4A + 2D or 2A or 3A)
- Communication: Modbus RS232
