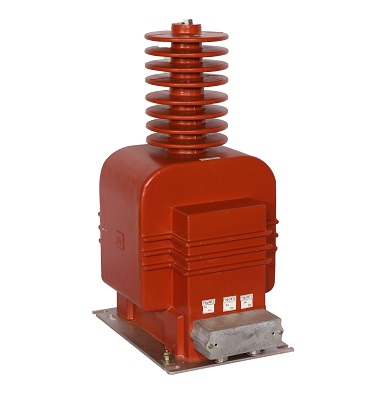

Kalpa 33kV Outdoor Dry Type Cycloaliphatic VT PT Single Phase Single Pole 50 Hz Ratio 33kV/RT3//110V/RT3-110V/RT3 Class 0.2 Burden 30VA Voltage Transformer
Brand: Kalpa
Kalpa 33kV Outdoor Dry Type Cycloaliphatic VT PT Single Phase Single Pole 50 Hz Ratio 33kV/RT3//110V/RT3-110V/RT3 Class 0.2 Burden 30VA Voltage Transformer
- NEA Lab tested
- Built as per the NEA Standard
- Winding1 : Class 0.2 Burden 30VA
- Winding2 : Class 0.2 Burden 30VA
- Voltage Factor 1.2 Continuous. /1.5 for 30 sec. ILV 36/70/170 kVp. Ins Class B
- Standard:. IEC61869-1&3
- One End Earthed type without fuse.
- Made in India by Kalpa Electrikal
- Special Note: Primary Neutral to be Solidly earthed.
| Application | Outdoor |
| Casting | Cycloaliphatic Epoxy Resin |
| Highest Voltage for Equipment (kV) | Up to 33KV |
| Rated Insulation Level (kV) | Up to 36/70/170kVp |
| Rated Frequency (Hz) | 50Hz |
| Rated Primary Voltage(V) | Up to 33kV |
| Rated Secondary Voltage(V) | 110V/RT3, |
| Accuracy class | 0.2 |
| Rated Burden (VA) | Up to 30VA |
| Number of Windings | 2 |
| Voltage Factor | 1.2 Continuous/1.5 for 30 sec, Ins Class B |
| Type of Earthing | One End Earthed Type (E-N) without fuse |
| Applicable Standards | IEC61869-1&3 |
