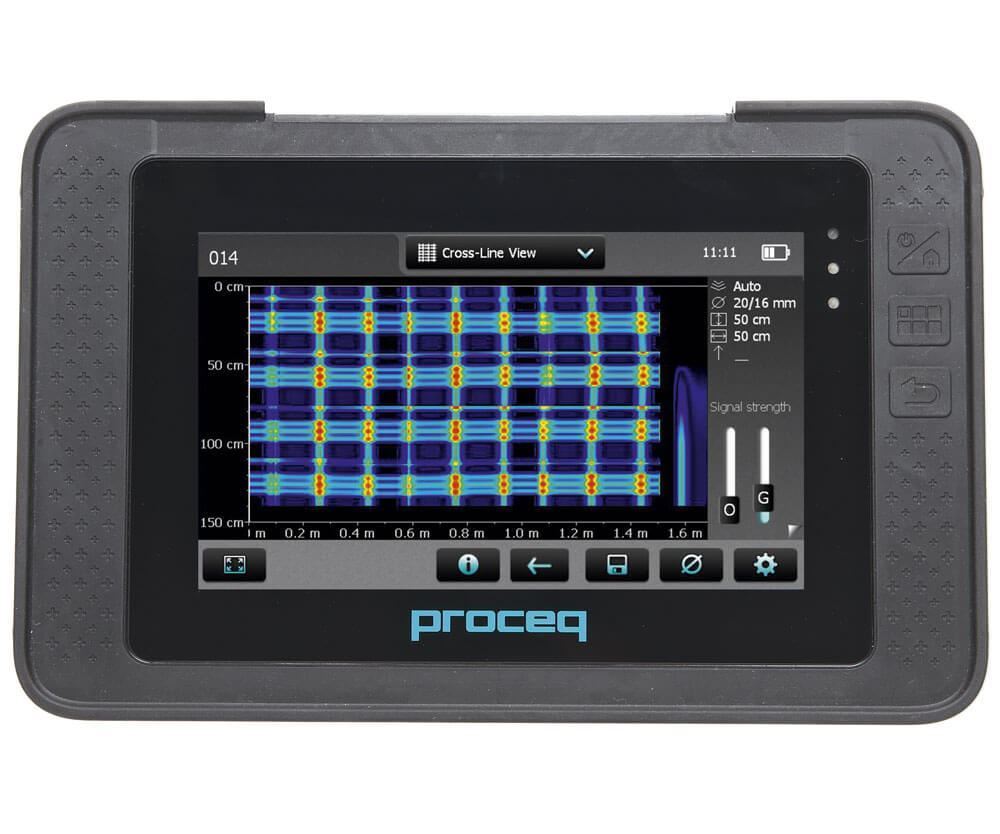

Proceq Profometer PM-6 Rebar Locator

Profometer PM-6 Cover Meters by Proceq are the sixth generation in over 40 years of quality instruments designed for determining the location and measurement of concrete reinforcing steel. These models offer greater flexibility, productivity, and advanced technology.

Features include high-resolution color touchscreen operation, internal 8GB flash memory, dual-core processors, and instant model upgrades through the purchase of an activation key.

Profometer models have superior detection range and accuracy. Bar location can be detected, and concrete cover measured up to 7.3in (185mm) deep, with cover accuracy of less than ±0.16in (4mm). Shallower depths can produce a diameter accuracy of ±1mm. Diameters of No. 12 (40mm) bars can be identified at depths up to 2.5in (63mm) with an accuracy of ±1mm. Detection and measurement limits and accuracy are affected by cover depth and bar diameter. 7in (178mm) IP54-rated color touchscreen display is 800x480 pixels.

All models of Profometer 6 series are contained within a rugged housing to protect against harsh field conditions. They include a universal probe with an integrated spot probe, a 5ft (1.5m) probe cable, a detachable wheeled scanning cart, a power supply, a carrying strap, and a carrying case. Profometer Link software is also included and allows downloading of data and the creation of customized reports with detailed charts and graphs.
