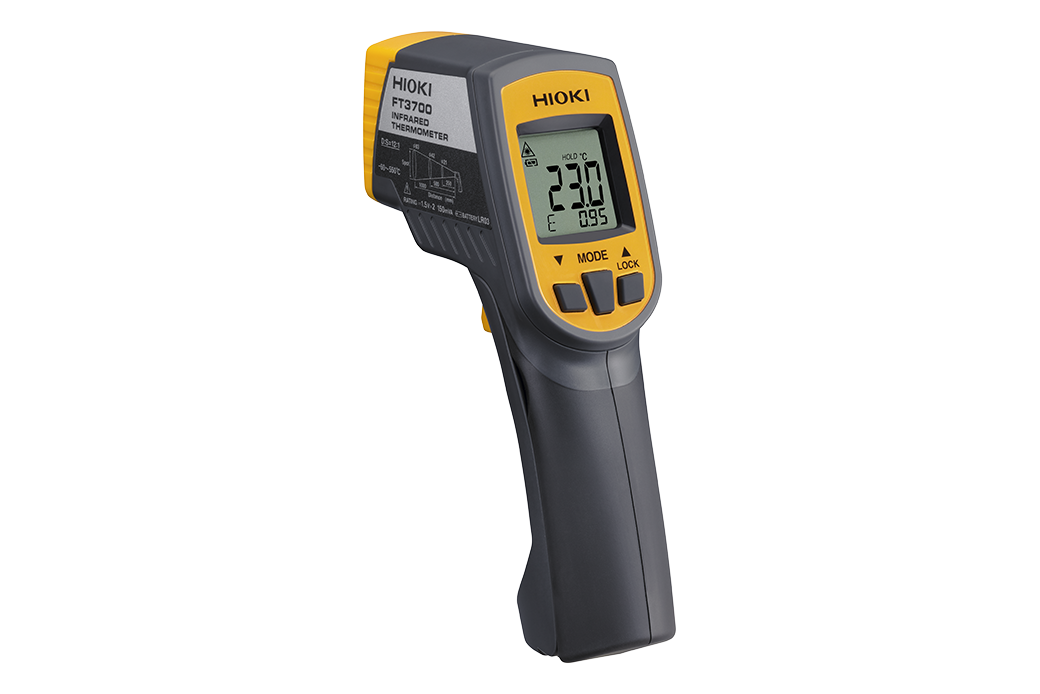

Hioki IR Thermometer FT3700-20 -60.0 to 550.0 ˚C

Measurement temperature range:-60.0 to 550.0 ˚C (-76 to 1022 ˚F)

Guaranteed accuracy range : -35 to 500°C. (-31.0 to 932.0 ˚F)

0.0 to 100.0 ˚C (-32.0 to 212.0 ˚F) : ±2 ˚C

100.1 to 500.0 ˚C (212.1 to 932.0 ˚F) : ±2%rdg.

-35.0 to -0.1 ˚C (-31.0 to 31.9 ˚F) : ±10%rdg.±2 ˚C

Accuracy guarantee for temperature and humidity: 23 ˚C ±3 ˚C (73 ˚F ±5 ˚F)80% RH or less (non-condensating)

Temperature coefficient:  Measurement accurary × 0.1/ ˚C

Diameter of field of measurement: 83 mm at 1000 mm (Distance : Spot = 12 : 1)

Response time: 1 second (90%)

Detection element: Thermopile

Sighting: Two-point laser marker max 1mW (class 2), Red

Measurement wavelength: 8 to 14 µm[Thermal emissivity compensation] 0.10 to 1.00 by steps of 0.01

Functions: MAX/ MIN/ DIF (MAX-MIN)/ AVG measurement, Alarm function, Backlight function

Operating temperature and humidity: 0 to 50˚C (32˚F to 122˚F), 80%RH or less (non-condensating)

Storage temperature and humidity:

-10 to 50˚C (14˚F to 122˚F), 80%RH or less (non-condensating)

50 to 60˚C (122˚F to 140˚F), 70%RH or less (non-condensating)

Applicable standards: EMC : EN61326 ,Laser : IEC60825-1 CLASS 2 LASER

Power supply: LR03 alkaline battery × 2, 150mVA [Continuous operating time:Approx. 140 hours] (When laser marker and backlight are OFF)

Dimensions: Approx.48 W × 172 H × 119 D mm

(1.89" W × 6.77" H × 4.69" D) (excluding projections)

Mass: Approx. 256 g (9.0 oz.) (including LR03 alkaline battery × 2)

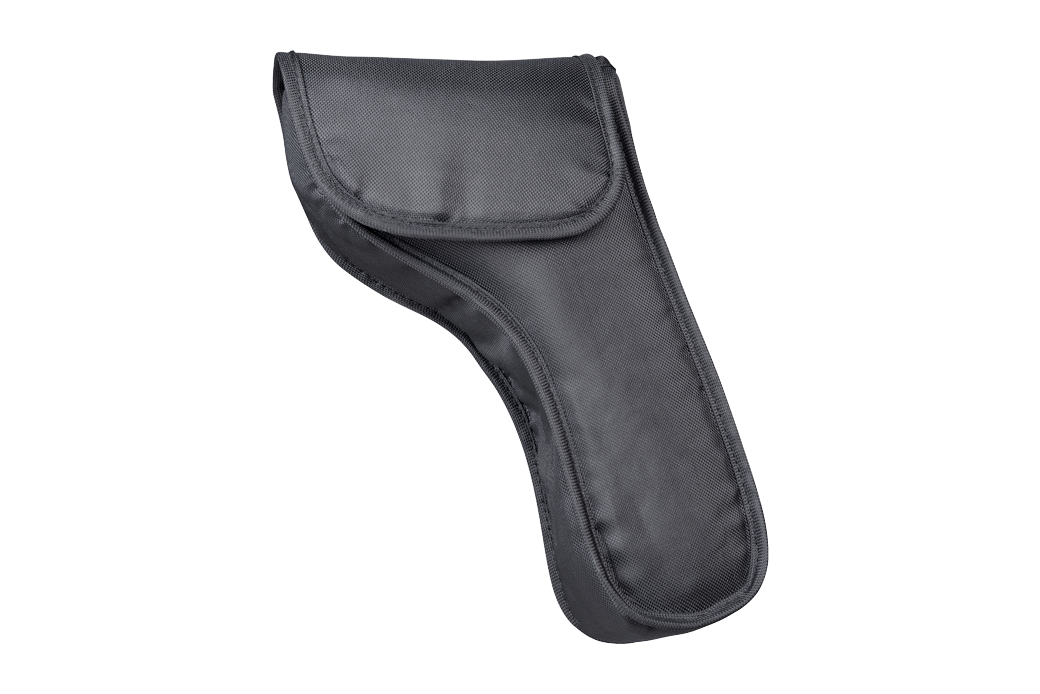

Accessories: Instruction manual × 1, LR03 alkaline battery × 2 (supplied with this product for initial use only), Carrying case × 1
