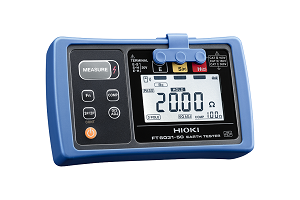

Hioki Earth Tester FT6031-50 Japanese Digital Ground Resistance Voltage Tester Ohm Megger meter
Brand: HIOKI
Category: Earthing, Lightening Protection
- Brand: Hioki
- Model: FT6031-50
- Using a grounding resistance meter: Two-pole and three-pole methods
- Dustproof and waterproof enclosure for robust performance in the field
- Excellent noise resistance
- Easily transfer measurement data to an Excel® file
- Instantly create reports by a free app (GENNECT Cross)
- Wireless support - Wireless communication capability for even greater convenience than FT6031 (legacy model)
- Dramatically faster measurement setup (preparation)
- Digital grounding resistance meter featuring easy operation
- Tangle- and twist-free measurement cord winders
Earthing or grounding of electrical equipment is essential to maintain safety, protecting lives, as well as prevent damage to equipment. The FT6031-50 is a IP67 dustproof and waterproof two-pole or three-pole ground resistance tester with large, easy-to-read display, highly sensitive earthing rods, and innovative cable winder that significantly reduces the amount of time needed to complete earth resistance tests.
| Measurement system | Two-electrode method/three-electrode method (switchable) | |||||
|---|---|---|---|---|---|---|
| Measurement range | 20 Ω (0 Ω〜20.00 Ω) | 200 Ω (0 Ω〜200.0 Ω) | 2000 Ω (0 Ω〜2000 Ω) | |||
| Accuracy | ±1.5% rdg ±8 dgt | ±1.5% rdg ±4 dgt | ±1.5% rdg ±4 dgt | |||
| Earth voltage | 0〜30.0 V rms Accuracy: ±2.3% rdg ±8 dgt (50 Hz/60 Hz), ±1.3% rdg ±4 dgt (DC) |
|||||
| Allowable earth potential | 25.0 V rms (DC or sine wave) | |||||
| Dustproof and waterproof | IP65/IP67 (EN60529) | |||||
| Power supply | LR6 Alkaline battery ×4, Possible number of measurements: 500 times (measurement conditions: three-electrode method, measuring 10 Ω at 10-second intervals without Z3210 installed) | |||||
| Functions | Live wire warning, zero-adjustment, continuous measurement mode, wireless communication (only when Z3210 is connected), and comparator | |||||
| Dimensions and mass | 185 mm (7.28 in)W × 111 mm (4.37 in)H × 44 mm (1.73 in)D, 570 g (20.1 oz.) (including batteries and protector, excluding terminal covers and other accessories) | |||||

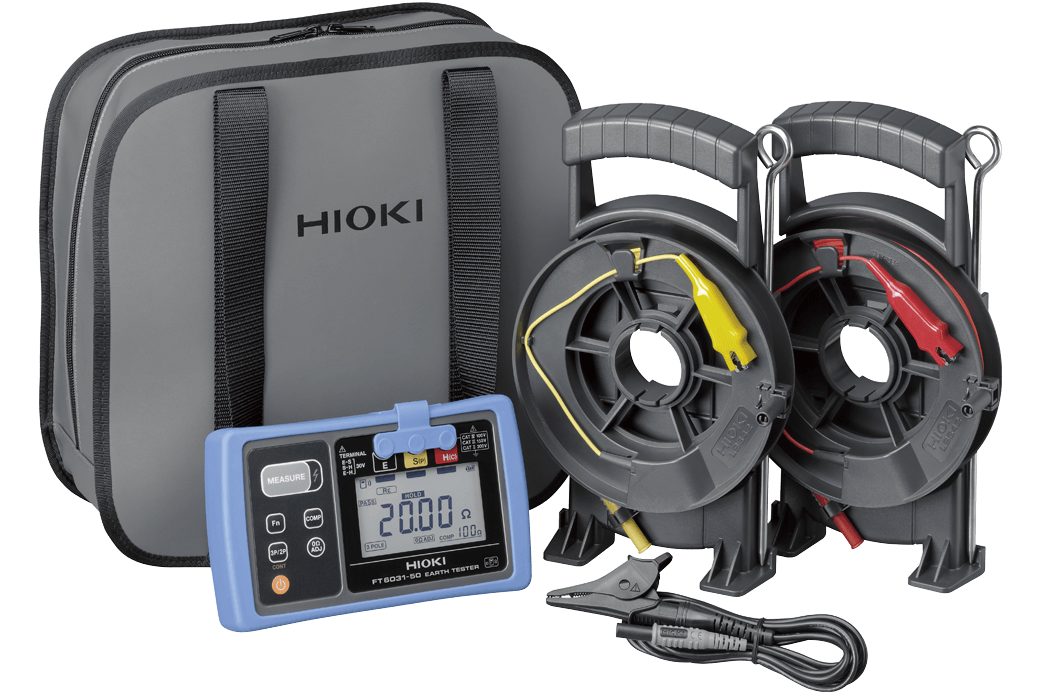

| Included accessories | Auxiliary Earthing Rod L9840 (2 piece set) ×1, Measurement Cable L9841 (black 4 m) ×1, Measurement Cable L9842-11 (yellow 10 m, equipped with winder) ×1, Measurement Cable L9842-22 (red 20 m, equipped with winder) ×1, Carrying Case C0106 ×1, Protector ×1, LR6 Alkaline battery ×4, Instruction manual ×1 | |||||
- Auxiliary Earthing Rod L9840 (2 piece set) ×1,
- Measurement Cable L9841 (black 4 m) ×1, Measurement Cable L9842-11 (yellow 10 m, equipped with winder) ×1, Measurement Cable L9842-22 (red 20 m, equipped with winder) ×1,
- Carrying Case C0106 ×1, Protector ×1,
- LR6 Alkaline battery ×4,
- Instruction manual ×1
